Low Loader Trailers
Extremely versatile Low Loader Trailers agricultural trailers range

Low Loader Trailers

These come in 2 categories, Agri Low Loader or Plant Low Loader.

Built using over 20 years experience in Wales
Custom built
Competitively priced
Aftersales services



Trailer Features

16mm rope hooks
Lashing rings
LED lights
Flashing beacon
Number plate lights
Spring suspension



Call us on
01269 832999



Agri low loader in 6,8 & 10 ton are based on a standard flat trailer design with a beaver tail. This is designed for general wheeled, rubber tract or steel tract machines but, not too heavy to tow on lighter tractors. Adjustable width ramps on plant low loaders, 8, 10, 12, 14 & 16 ton is designed to take heavy tract machines, especially steel tracks and on a wide range of axles or tyres. All chassis' from 8 to 14 ton up to 25' long are in 10" UB and 4x2 box section cross members with 6x3 side rails and timber 8x2 treated wooden floors.



Low Loader Trailer Models

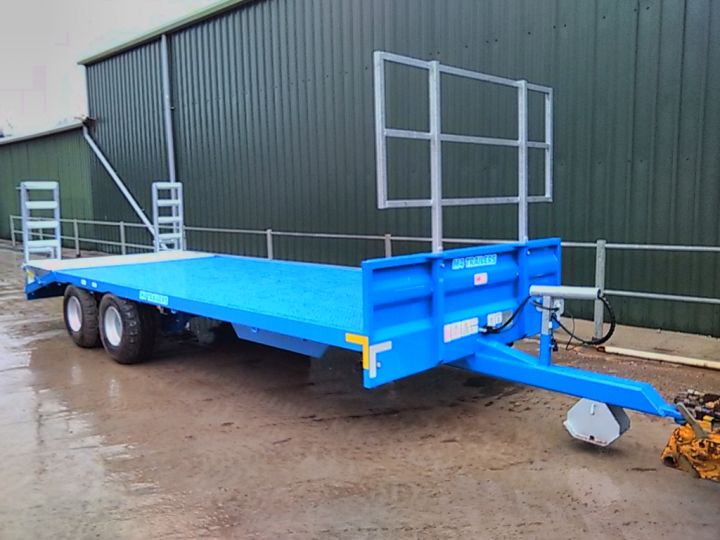

View Details

Body length: 18ft or 22ft
Body width: 7ft 6" or 8ft
Axle: 2x6 stud
Brakes: 300x60
Tyres: 12.5x80x15.3

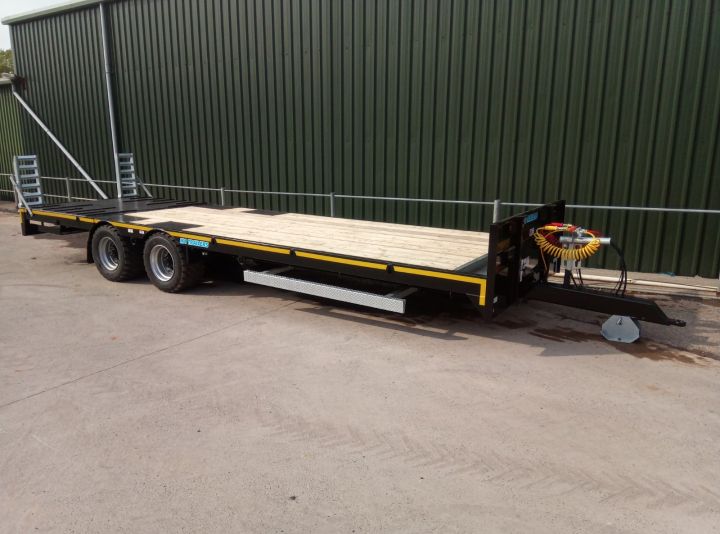

View Details

Body length: 14ft
Body width: 7ft 6"
Axle: 1x6 stud
Brakes: 300x60
Tyres: 12.5x80x15.3

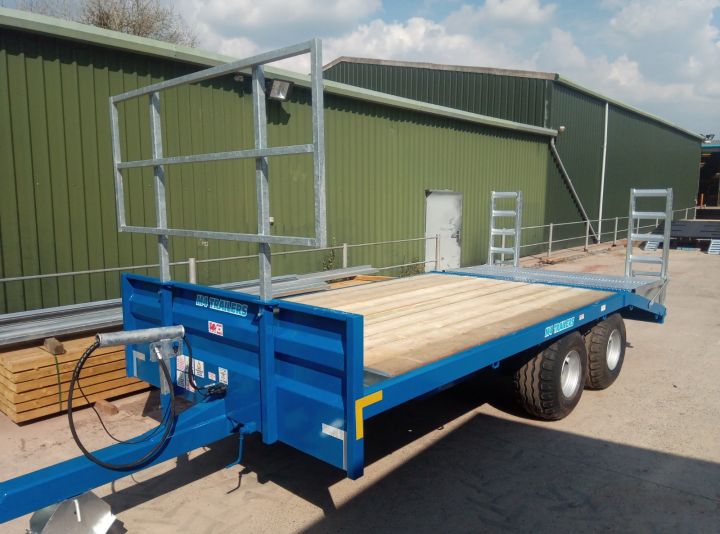

View Details

Body length: 14ft or 16ft
Body width: 8ft
Axle: 1x8 stud
Brakes: 300x90
Tyres: Super Singles

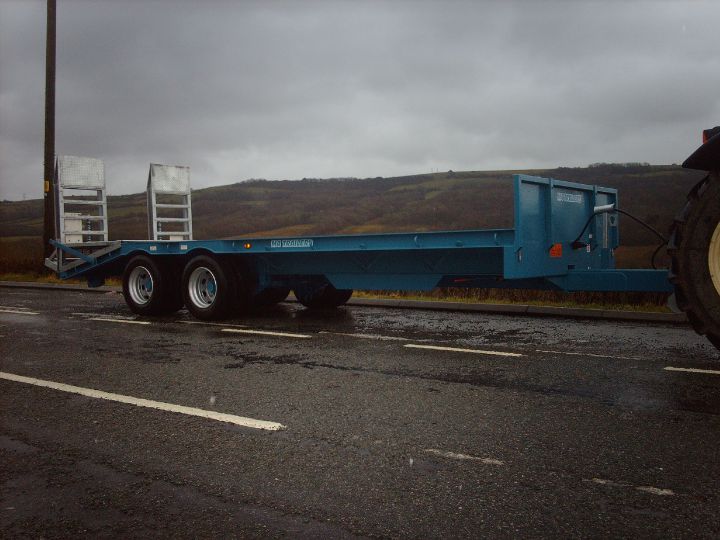

View Details

Body length: 16ft
Body width: 7ft
Axle: 2x6 stud
Brakes: 300x60
Tyres: 10.5x80x15.3

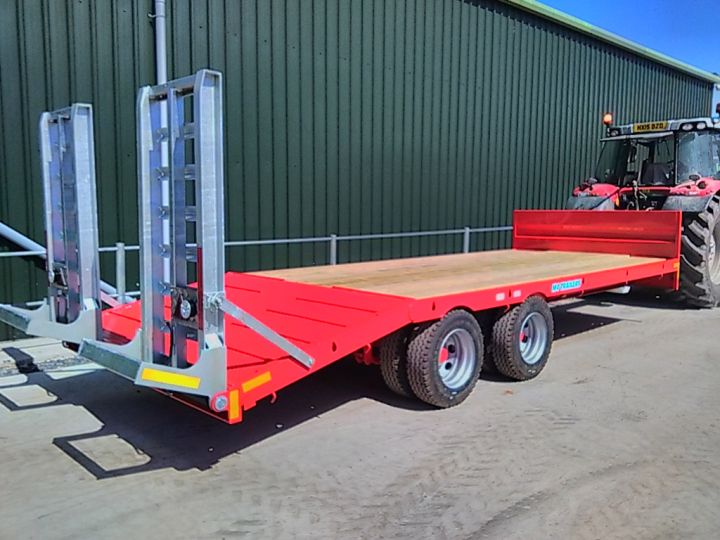

View Details

Body length: 18ft or 22ft
Body width: 7ft 6" or 8ft
Axle: 2x6 stud
Brakes: 300x60
Tyres: 400x15.3

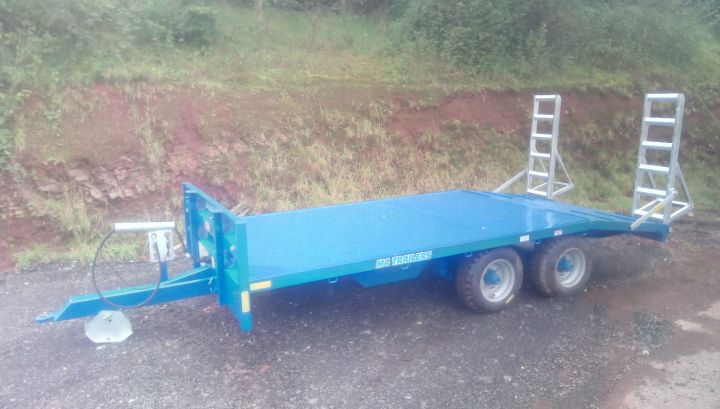

View Details

Body length: 22ft
Body width: 8ft
Axle: 2x8 stud
Brakes: 300x90
Tyres: 215x17.5 twin

View Details

Body length: 22ft or 26ft
Body width: 8ft
Axle: 2x8 stud
Brakes: 300x90 Or 300x135 comm
Tyres: 215x17.5 twin

View Details

Body length: 22ft or 26ft
Body width: 8ft
Axle: 2x8 stud
Brakes: 300x90 Or 300x135 comm
Tyres: 215x17.5 twin

Standard Features

Rope hooks

Lashing rings

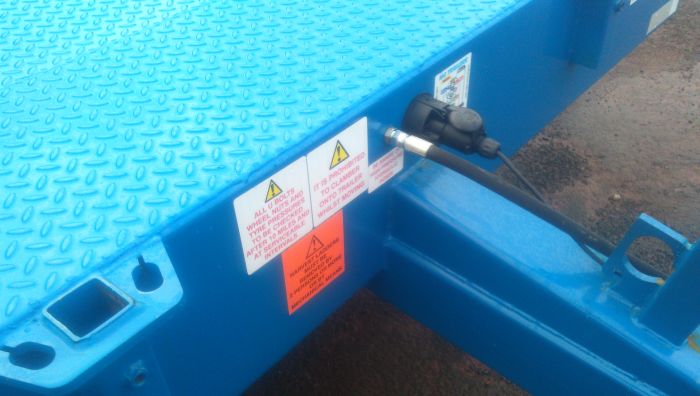

Bulkhead fittings

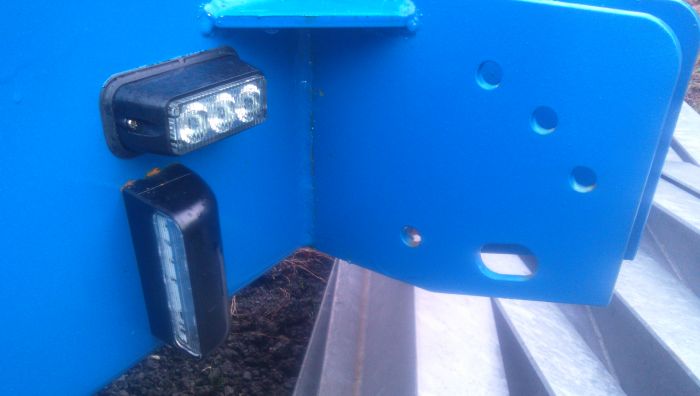

Flashing beacon



Optional Extras

We can make bespoke trailers but the following are the most popular optional extras.

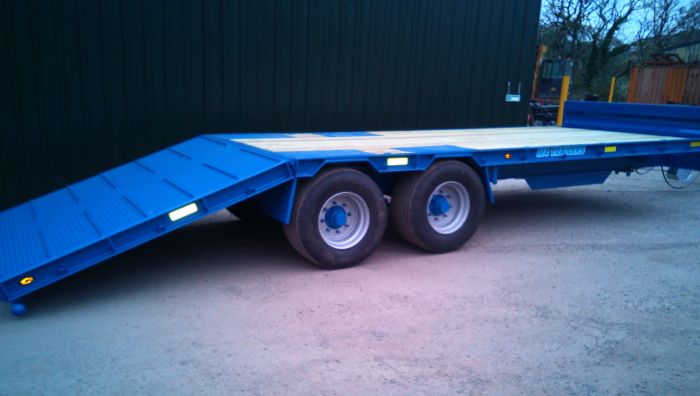

Hydraulic Beavertail

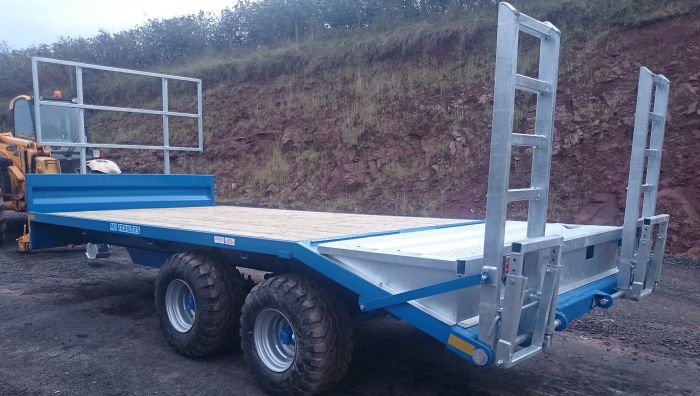

3 quarter bale rack and bale wedge

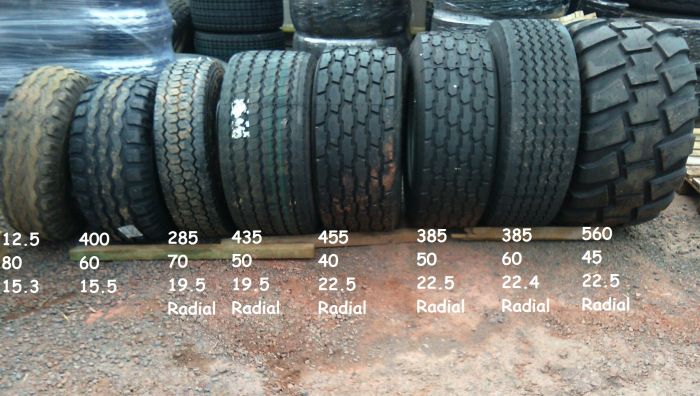

Tyre Sizes

Oversized tyres for the 6, 8 and 10 tonnes models:
400 x 65 x 15.5 (14 Ply) and 340 x 65 x 18 (road tyre)

Oversized tyres for the 12 and 14 tonnes models:
550 x 45 x 22.5 (Floatation) and 435 x 50 x 195 (road tyre)

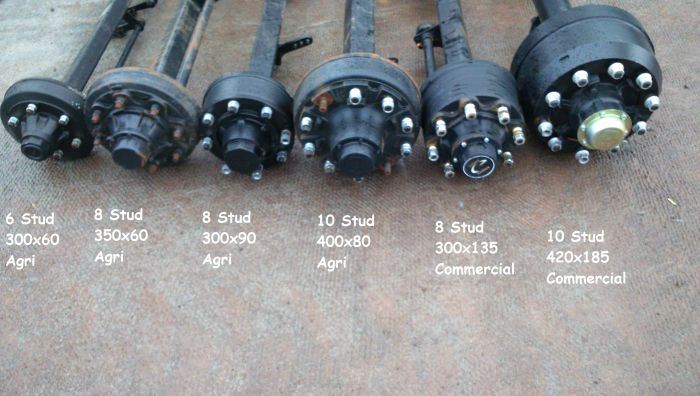

Axles sizes
